IQON TR Decode DH Frame – Downhill Inline Skate Frame
The IQON DECODE DH is the definitive "Swiss Army knife" for UK downhill skating. Track conditions dictate performance: some require aggressive slides and tight cornering, while others demand straight-line stability and terminal velocity. This frame eliminates the need for multiple setups by consolidating the four most effective downhill configurations into a single, versatile chassis.
*Includes Decode bearings (not compatible with any other bearing brand).
Versatile 4-in-1 Configurations
| Setup | Characteristics | Best For |
| 5x90mm | Low centre of gravity; easy slide initiation. | Classic DH and Freeride fun. |
| 125-100-100-125mm | Extremely low profile with massive momentum. | Balanced racing on varied tracks. |
| 125-110-110-125mm | Longer wheelbase for larger feet/stability. | Maximum top speeds. |
| 4x110mm | Increased grip via specific wheel spacing. | Consistent wheel-wear rotations. |
Performance Engineering
-
Rapid Maintenance: Wheels mount from the inside of the frame. This allows for "pit stop" speed wheel swaps without removing your boots.
-
Optimised Stability: The wheelbase is shifted slightly rearward to improve stability in a tuck and provide smoother slide control.
-
Trinity Mounting: Utilises the low-profile Trinity 3-point system with elongated mounting rails for superior custom positioning.
Technical Notes & Expert Advice
Installation Tip: Fitting the middle wheels requires precision. The bearing spacers must be perfectly aligned for the axle to pass through. This is a design characteristic rather than a defect; we recommend patience during your initial setup.

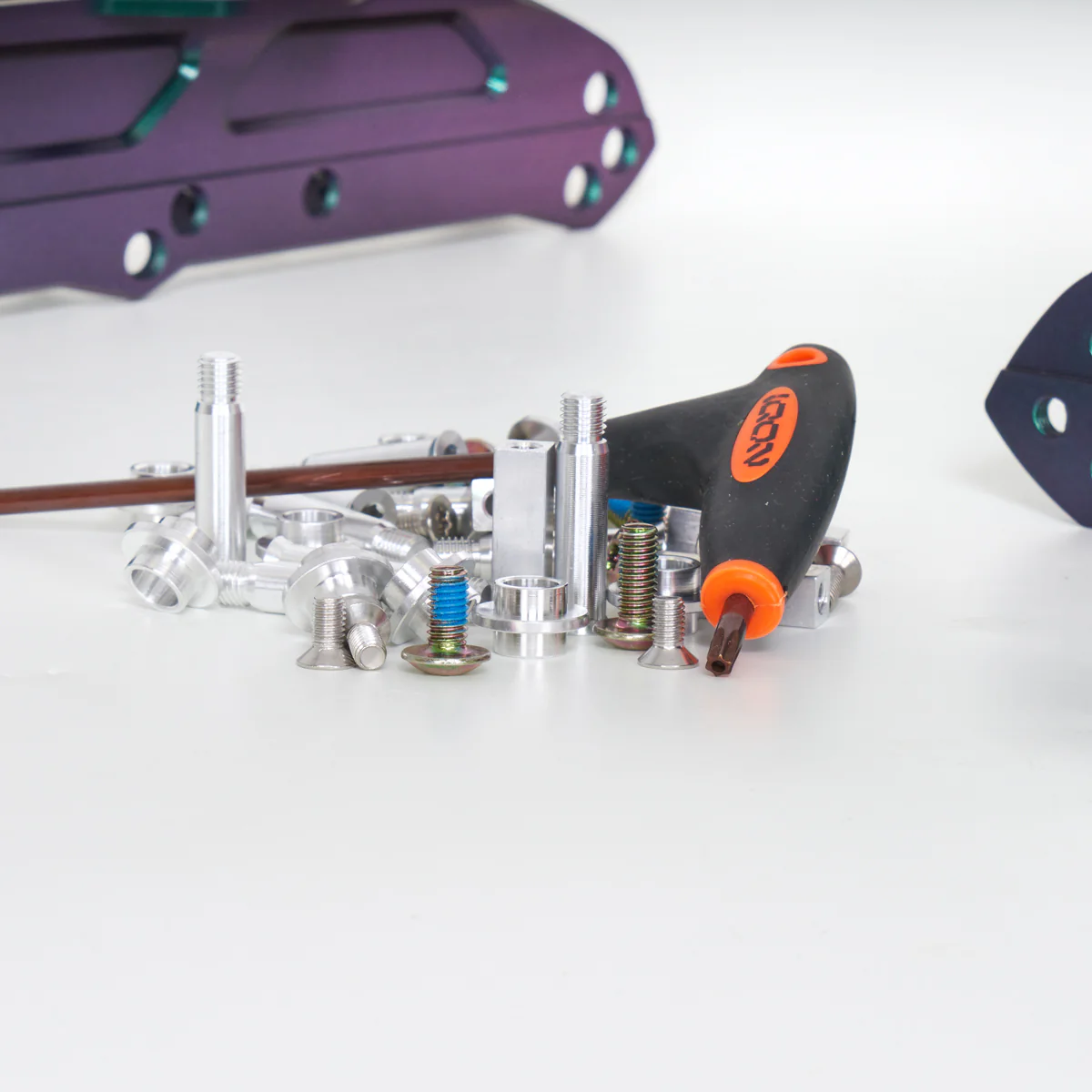

Hardware Detail: If using the metal logo colour inserts, you must install the full set (four per frame). Using a partial set will cause audible rattling during high-speed vibrations.
